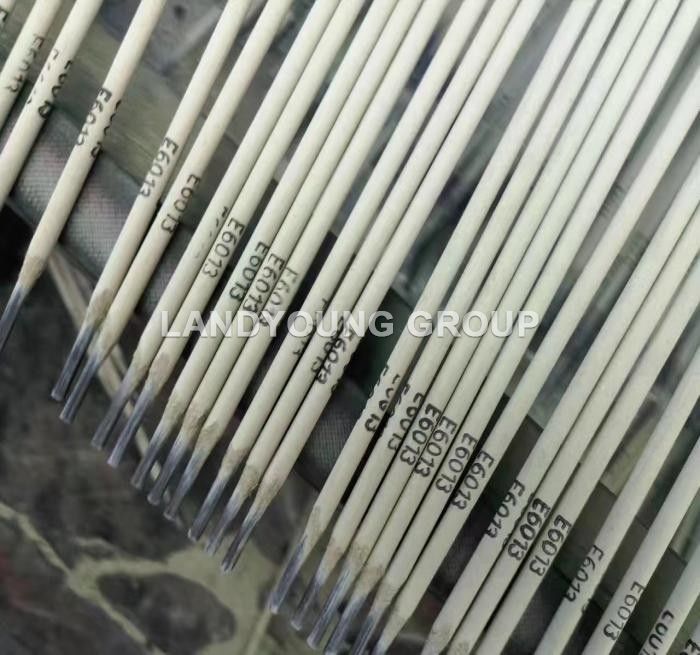

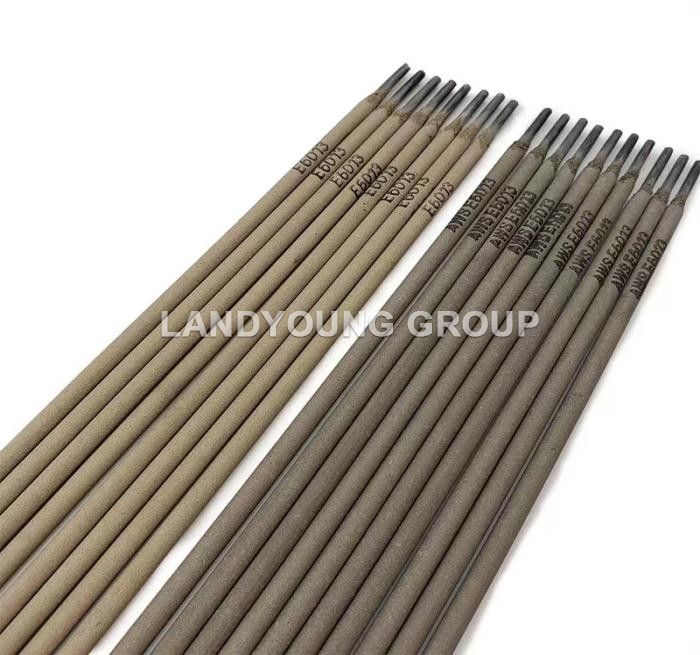

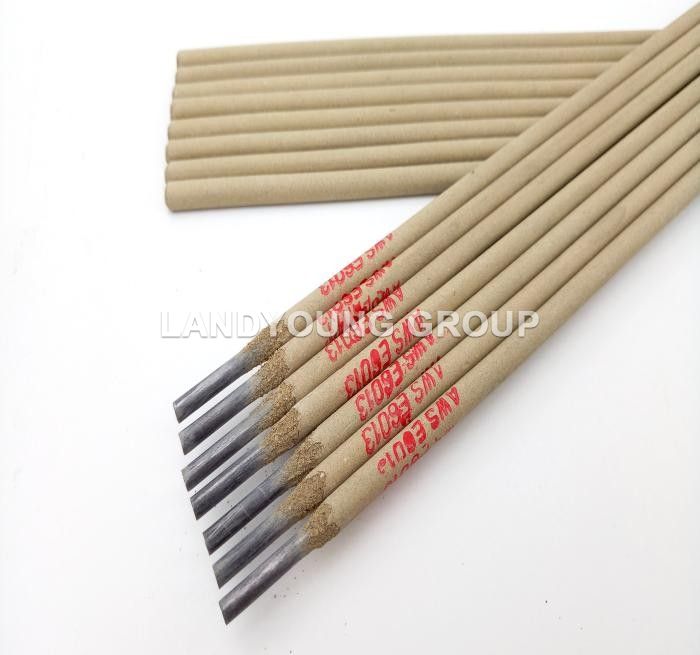

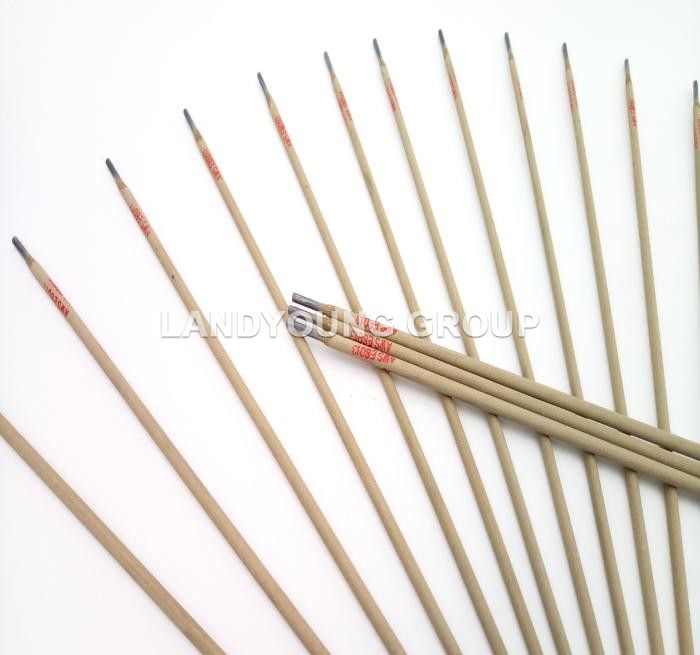

Mild steel welding electrode E6013 rutile grade

Mild steel welding electrode E6013 rutile grade

Inquire Now

Product details

SHORT DESCRIPTION

Rutile grade E6013 is with better quality and has been exported to many countries in Europe (Germany, Poland, Italy, France…etc).It is suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass.

MILD STEEL WELDING ELECTRODE E6013 RUTILE GRADEAPPLICATIONS

It is suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass.

CHARACTERISTICS

J421 is a rutile type electrode. Can be welding by both AC & DC power source and can be for all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc.

APPLICATION

The Mild Steel Welding Electrode E6013 is widely used in various national economic fields, such as machinery, metallurgy, petroleum chemical industry, boiler, pressure vessel, the ships, the buildings, bridges, and so on, The products are sold to all over the country, and well received by the vast users. Our products have excellent performance, stable quality, elegant welding molding, and good slag removal, good ability to resist rust, Stomata and crack, good and stable deposited metal mechanics performance. Our products are one hundred percent exported and have sold world widely, mainly to US, Europe, South America, Australia, Africa, Middle East, Southeast Asia and etc.

ATTENTION:

In generally, don’t need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 150℃-170℃ for 0.5-1 hour.

WELDING POSITIONS

PA, PB, PC, PD, PE, PF

DEPOSIT COMPOSITION: %

items	C	Mn	Si	S	P	Ni	Cr	Mo	V
Require-ments	≤0.10	0.32-0.55	≤0.30	≤0.030	≤0.035	≤0.30	≤0.20	≤0.30	≤0.08
Typical Results	0.08	0.37	0.18	0.020	0.025	0.030	0.035	0.005	0.004

MECHANICAL PROPERTIES:

items	Tensile StrengthRm/MPa	Yield Strength Rel/Rp0.2 MPa	ElongationA/%	Charpy V-NotchKV2(J)0℃
Require-ments	440-560	≥355	≥22	≥47
Typical Results	500	430	27	80

SPECIFICATION

Size: 2.0*300mm, 2.5*300mm, 3.15*350mm, 3.2*350mm,4.0*400mm, 5.0*400mm
Standard: AWS3.
Certification: ISO9001, SGS, COC

PACKAGING AND SHIPPING

We can do any color packing as you wanted. With good packing materials to keep welding rods quality and prevent moisture. Also four production lines will let you feel fantastic about the delivery time.

WELDING ELECTRODES PACKING

Size(mm)	Weight(kg)	Inner Packing(mm)	Outer Packing(mm)	Sticks/ box
2.5×300	2.5kg/box,8boxes/carton=20kg	3108060	320170120	145
2.5×350	5kg/box 4boxes/carton=20kg	3608060	360170120	290
3.2×350	5kg/box 4boxes/carton=20kg	3608060	360170120	150
4.0×400	5kg/box 4boxes/carton=20kg	4108060	420170120	90
5.0×400	5kg/box 4boxes/carton=20kg	4108060	420170120	55

We can use pallet or not as you required. Also 1MT/pallet, 2MT/pallet or 2.5MT/pallet.

Each OEM package can be done as clients required.

DELIVERY TIME 10 days after we receiving the advance payment.
