Barbed wire
Brief introduction

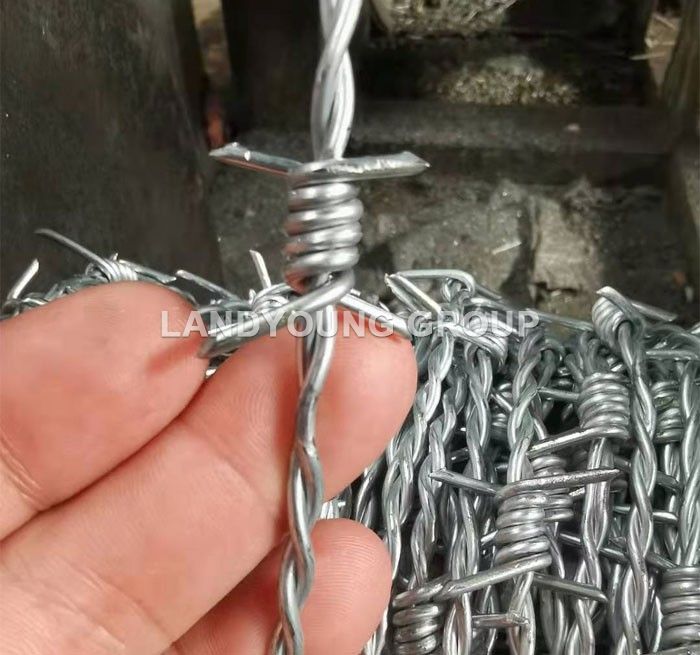

Barbed wire is an isolation protective net made of barbed wire wound on the main wire (strand wire) through a variety of weaving processes.
Barbed wire is twisted and braided by the fully automatic barbed wire making machine.
Folk commonly known as iron tribulus, barbed wire, barbed line.
Barbed wire is a kind of modern security fencing materials,Barbed wire can be installed at the top of the wall or the top of the fence as the deterrent to the perimeter intruders.
Galvanized barbed wire has great protection against corrosion and oxidation which are caused by the atmosphere. The barbed wire can be installed on the fencing post with longer or shorter spacing because of Its high resistance . It is normally used for grass boundary, railway, highway isolation protection, prison, etc.
Feature:
1. Bright finished
2. Anti-rust
3. Strong and hard
4. anti-corrosion
5. anti-ageing
6. solarization resistance
7. Durable
Technology
Material | High quality low carbon steel wire |
Surface treatment | Electro galvanized |
Hot dipped galvanized | |
PVC coate | |
Dural alclad | |
usage | grass boundary, railway, highway isolation protection, prison, etc. |
color | Blue,yellow, green, white, black..... support customer customization |
Applications:
Used for anti-theft and protection in factories, private villas, the first floor of residential buildings, construction sites, banks, prisons, banknotes printing factories, military land, bungalows, low walls and other places.
Specification of Barbed Wire | ||||
Gauge of Strand and Barb in BWG | Approximate Length per kilogram in Meter | |||
Barbs Spacing 3"; | Barbs Spacing 4"; | Barbs Spacing 5"; | Barbs Spacing 6"; | |
12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Special size and specification can be customized |
Barbed wire classification
Classification by twist method | Single twist |
Double twist | |
Traditional twist | |
Classification by twist plait method | positive twist |
reverse twist | |
positive and negative twist. | |
Classification by surface treatment | Electro galvanized wire |
Hot dipped galvanized wire | |
PVC outside, black wire or GI wire or hot dipped galvanized wire inside. | |
Dural alclad (new products) |
Illustrate:
Twist method: it is to twist two or more wires into a double wire rope and then twist the barbed wire around the double wire. Reverse twist method: it is to wind the barbed wire around the main wire (that is, a single wire) and then add a wire and twist it into a double strand barbed wire.
Positive and negative twist method: it is the opposite direction of the direction of the main wire winding from the wire. It's not twisted in one direction
